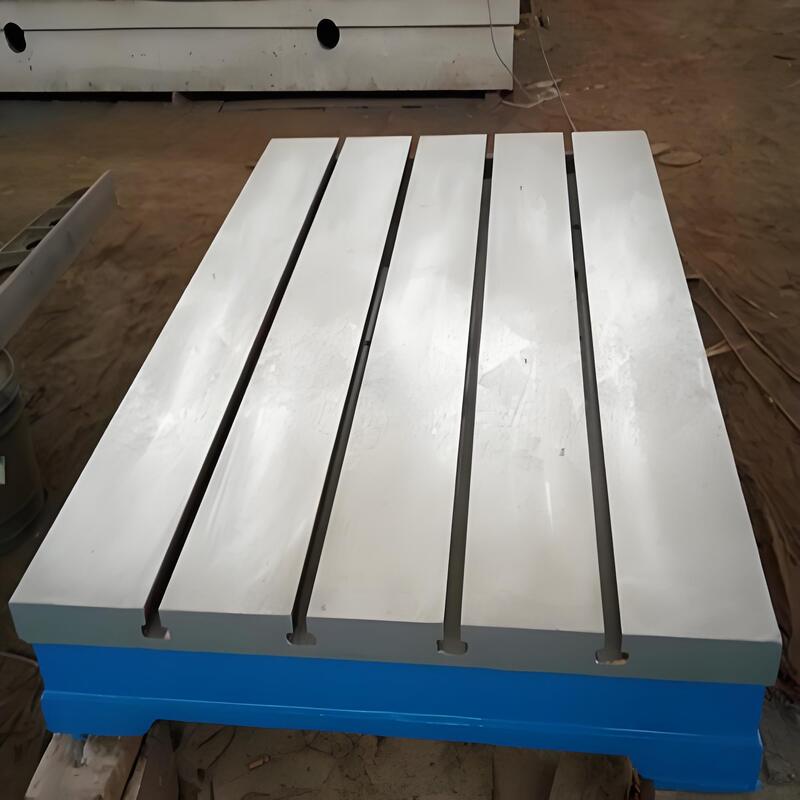

OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate

Name: OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate
Brand: Hebei Qiaoda Environmental Protection Technology Co., Ltd.
SKU: HT250-1000*2000
Price: 2980 USD
Availability: InStock

تفاصيل المنتج

مكان المنشأ: هيبي الصين

اسم العلامة التجارية: QiaoDa

إصدار الشهادات: CE

رقم الموديل: HT250-1000*2000

شروط الدفع والشحن

الحد الأدنى لكمية: 1 قطعة

الأسعار: 2980

تفاصيل التغليف: صندوق خشبي

وقت التسليم: عشرون كلمة في اليوم

القدرة على العرض: 10

احصل على أفضل سعر

تفاصيل المنتج

وصف المنتج

إبراز:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                OEM HT250 cast iron welding table, precision ground T-slot fixture plate, modular welding table with warranty


التوافق:	متوافق مع المشابك والتركيبات القياسية	تصميم وحدات:	نعم
ينهي:	مسحوق المغلفة	قوة ضاغطة:	245-254 كجم/مم2
استقرار:	عالي	يستخدم:	الإنتاج الصناعي والتصنيع
التسطيح السطحي:	± 0.1 ملم	مقاومة التآكل:	ممتاز
سمك الطاولة:	15 ملم	متانة:	دائم
ضمان:	1 سنة	حجم الجدول:	1000mm x 2000mm
ارتفاع قابل للتعديل:	خياري	سعة التحميل:	500 كجم

التوافق:	متوافق مع المشابك والتركيبات القياسية
تصميم وحدات:	نعم
ينهي:	مسحوق المغلفة
قوة ضاغطة:	245-254 كجم/مم2
استقرار:	عالي
يستخدم:	الإنتاج الصناعي والتصنيع
التسطيح السطحي:	± 0.1 ملم
مقاومة التآكل:	ممتاز
سمك الطاولة:	15 ملم
متانة:	دائم
ضمان:	1 سنة
حجم الجدول:	1000mm x 2000mm
ارتفاع قابل للتعديل:	خياري
سعة التحميل:	500 كجم

OEM HT250 Cast Iron Welding Table | Precision Ground T-Slot Fixture Plate

Product Overview

Our OEM HT250 Cast Iron Welding Table is a heavy-duty, high-precision industrial fixture plate designed for professional welding, assembly, inspection, and tooling setup applications. Crafted from premium HT250 gray cast iron with ultra-precision surface grinding, this T-slot fixture plate delivers exceptional dimensional stability, vibration damping performance, and long-term wear resistance.

Fully customizable in size, T-slot specification, and processing requirements, it serves as a universal foundational tool for metal fabrication workshops, automated welding lines, mechanical processing plants, and mold debugging scenarios. Each table undergoes complete stress relief treatment and precision calibration to ensure zero deformation under long-term heavy-load operation.

Core Product Advantages

Premium HT250 Cast Iron Material Performance

Utilizing national standard HT250 gray cast iron with dense pearlite matrix and unique graphite flake structure, this table offers superior industrial adaptability. Features include bending strength above 250MPa, surface hardness of HB170-HB240, excellent compression and impact resistance, and natural graphite self-lubrication that reduces surface friction and extends service life beyond 10 years.

Precision Ground & Stable Dimensional Accuracy

Multi-stage precision grinding technology ensures flatness tolerance within 0.05mm/1000mm, meeting high-precision welding and fixture positioning standards. T-slots are precisely milled with uniform spacing, smooth inner walls, and no burrs for tight fitting with standard clamping fixtures and accessories.

Complete Stress Relief & Anti-Deformation Structure

Dual stress relief treatments including high-temperature annealing and 3-6 months natural aging eliminate internal casting and processing stress. Integral casting with thickened base and reinforced rib structure resists deformation from welding high temperatures, mechanical impact, and long-term static loads.

Universal T-Slot Design & Strong Compatibility

Standard T-slot layout (customizable slot pitch and size) compatible with mainstream welding clamps, positioning pins, pressure plates, bolts, and modular fixture systems. Open T-slot structure supports multi-directional workpiece fixing and flexible positioning for complex welding operations.

Industrial Durability & Easy Maintenance

Cast iron surface provides excellent high-temperature resistance, rust resistance, and scratch resistance. Matte precision grinding surface minimizes welding slag and dust accumulation. Standard load capacity of 2,000kg with heavy-duty custom options available.

Detailed Technical Parameters

Item	Technical Specification
Material	National Standard HT250 Gray Cast Iron
Surface Hardness	HB170 - HB240
Flatness Tolerance	0.05mm/1000mm (Precision Grade)
Processing Technology	Integral Casting + High-temperature Annealing + Natural Aging + Precision Surface Grinding
Standard T-Slot Spec	16mm/28mm (Custom Slot Pitch 50mm/100mm Optional)
Standard Load Capacity	2000KG (Custom Heavy-duty Load Available)
Surface Treatment	Precision Grinding, Rust-proof Passivation
Deformation Resistance	Zero Deformation After Long-term Heavy-load Operation
Service Life	More Than 10 Years of Industrial Service Life
Customization Service	Size, T-slot, Drilling, Tapping, Logo, Non-standard Structure OEM

Product Detailed Features

Integral Casting Molding: One-piece casting without splicing, uniform internal structure, no sand holes, trachoma or porosity
Multi-stage Precision Processing: Rough grinding, fine grinding, and precise calibration three-step processing
Optimized Rib Structure: Reinforced support ribs disperse bearing pressure and improve stability
Standardized T-slot Processing: Industrial standard slot size and spacing for global compatibility
Safe & Humanized Design: Smoothly chamfered edges and reserved mounting holes for safety and convenience

Application Scenarios

This HT250 cast iron T-slot welding table is widely applicable to metal welding fabrication, mechanical parts assembly, precision size inspection, mold debugging and testing, automated welding fixture positioning, equipment calibration, and batch workpiece processing. Suitable for automobile manufacturing, hardware processing, engineering machinery, aerospace accessories, ship parts, and custom metal processing industries.

Professional OEM & Customization Service

Full-range OEM/ODM customized services including custom table dimensions, T-slot specifications, drilling, tapping, counterbore processing, brand logo printing, and non-standard special-shaped fixture plates. Our technical team provides structural optimization and one-stop solutions from drawing confirmation to finished product inspection.

Quality Assurance & Service

All products undergo strict quality inspection including raw material testing, hardness testing, flatness precision detection, and stress inspection. Professional export packaging ensures safe transportation. Long-term after-sales technical support and product warranty service with quick response to customer needs.
